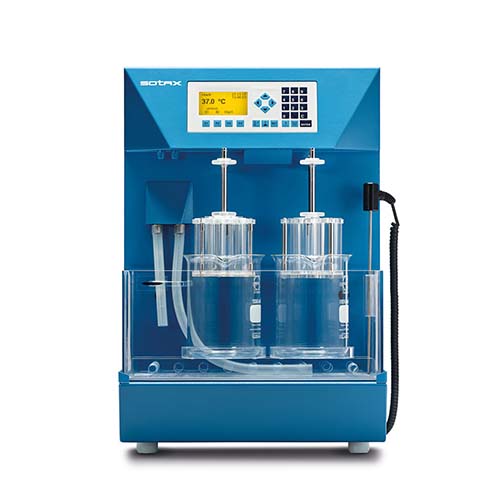

Manual Disintegration Tester

Manual tablet disintegration tester with two stations

The DT2 is a very easy-to-use and flexible disintegration tester with reliable temperature control. It records and reports disintegration times individually per sample or as a completed set. Two stations can be controlled, started, and stopped individually and allow performing 2 tests independently.

  • Two independent testing stations with automated lift-in / out functions and programming
  • Automatically lowers the baskets at test start and raises the baskets at test end
  • Print test reports with disintegration times, statistics, and temperature protocol
  • Manual recording of individual disintegration times per tablet or of a complete set
  • Precise temperature control with integrated flow-through heating system
  • Stations: 2 independent stations
  • Baskets (Apparatus A / B): 6- / 3- tube basket, 10 mesh, manual
  • Strokes per minute: 30 ± 1
  • Stroke height: 55mm ± 2
  • Temperature Range: 25 – 40℃, dual control built-in / external sensor, programmable
  • Program capacity:  10 methods
  • Dimension: 380mm (W) x 560mm (H) x 410mm (D)
  • Weight: 24kg
  • Power supply: 100 – 240 V / 50 – 60 Hz
  • Tablet Testing
  • R&D and QC in pharmaceutical industry
