DVC-24

Dissolution Vessel Cleaner

DVC-24 自动溶出杯清洗仪

Robust mobile cleaning unit to empty and steam-clean up to 24 dissolution vessels

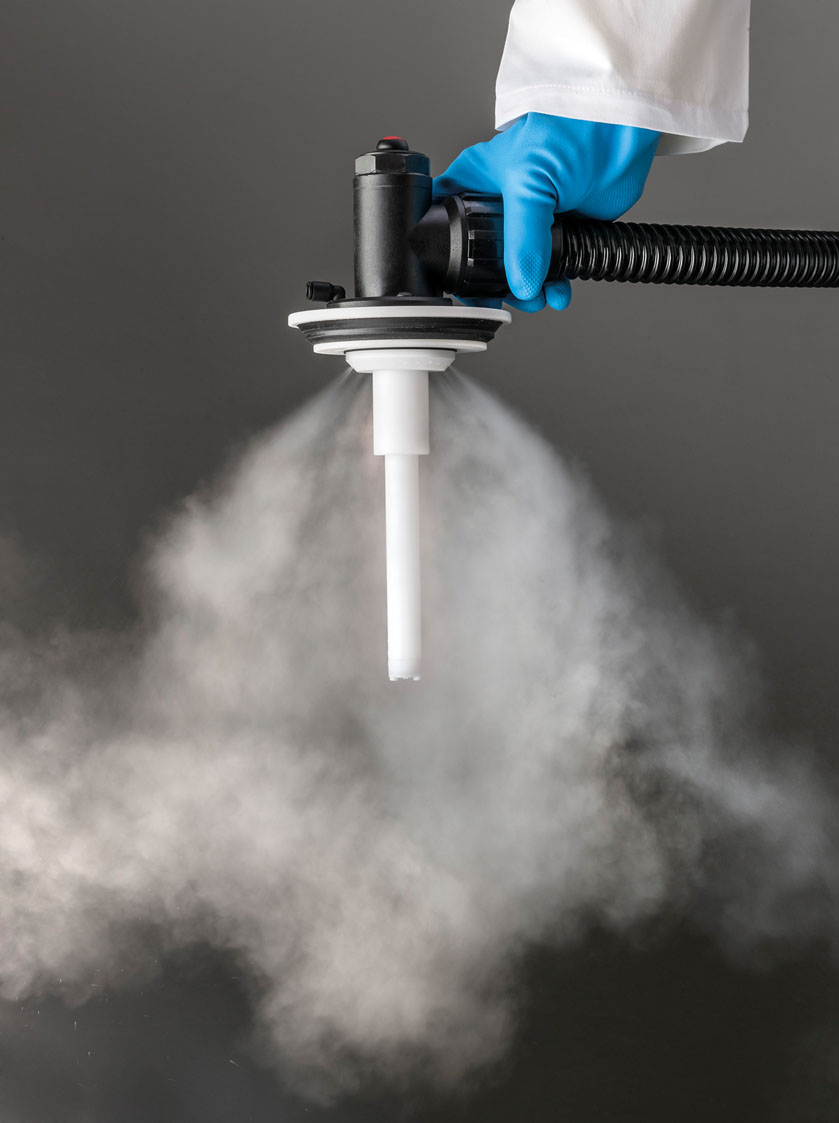

Robust, mobile, and easy to use, the DVC-24 is an automated dissolution vessel cleaner which is adaptable to all types of dissolution testers. It empties and effectively cleans multiple dissolution baths with a patented steam-cleaning process.

  • FAST – Only 20 seconds per vessel
  • REPRODUCIBLE – Empties and cleans dissolution vessels of multiple dissolution baths the same way every time
  • UNIVERSAL – Compatible with different brands and different style dissolution testers
  • MOBILE – No need to remove vessels anymore – bring cleaning to your laboratory bench
  • VALIDATION – Cleaning that can be validated
  • EFFECTIVE – Provides documented evidence of cleaning effectiveness better than 99.8% / less than 2 ppm
  • CAPACITY – Cleans up to 24 vessels / 4 testers without requiring reconditioning
  • PATENTED – Highly effective steam-cleaning process applies both thermal and mechanical force
  • Cleaning Cycles: 24 (based on 1L vessel)
  • Cleaning Programs: 3 pre-defined programs; customized if required
  • Start-up Time
    • (from cold start): < 7 minutes
  • Reconditioning Time:
    • (after 24 cycles): Approx. 6 minutes
  • Cleaning Time: 18 – 25 seconds per vessel (depending on program chosen)
  • Cleaning Agent: Purified water
  • Vessels
    • Standard: 1L SOTAX® vessels
    • Optional: Other manufacturers – 2 L vessels, 500 mL vessels, plastic vessels
  • Residue Treatment: Neutralized in waste tank before draining
  • User Interface: LCD touchscreen
  • Power Supply: 115 – 230 V / 50 – 60 Hz
  • QC and R&D in pharmaceutical industry
